5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC

  • 5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC
  • 5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC
  • 5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC
  • 5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC
Lieu d'origine Chine
Nom de marque HuaXin
Certification ISO14001/ISO9001/IATF16949
Numéro de modèle HX05S-30MI-A1
Documents HX05S-30MI-A1-spec.pdf
Quantité de commande min 1000
Prix Négociable
Détails d'emballage Blister + boîte en mousse + sac à bulles + carton intérieur + carton maître
Délai de livraison 6 semaines ~ 8 semaines
Conditions de paiement T/T
Capacité d'approvisionnement 100 000 par mois
Détails sur le produit
Technologie d'affichage ecran couleur de tft Nom AFFICHAGE TFT
Taille 5" Résolution 720*720
Conduite en circulation JD9365TX Angle de vue Gratuit
Interface MIPI Luminosité 460c / j
Laisser un message
Description de produit
HX05S-30MI-A1 is 5 inch 720x720 square color TFT display ,MIPI interface ,JD9365TX driving IC, 460c/d
Product Specifications
Part NO. HX05S-30MI-A1
Display Technology TFT display
Diagonal Screen Size 5 inch square TFT display
Active Area (mm) 91.368*91.368
Panel size(mm) 93.67(H)*96.87(V)*2.15(D)
Brightness(cd/m2) 460c/d
Resolution 720(RGB)x720
Interface MIPI
View angle ALL
Driving IC  JD9365TX
Product Images

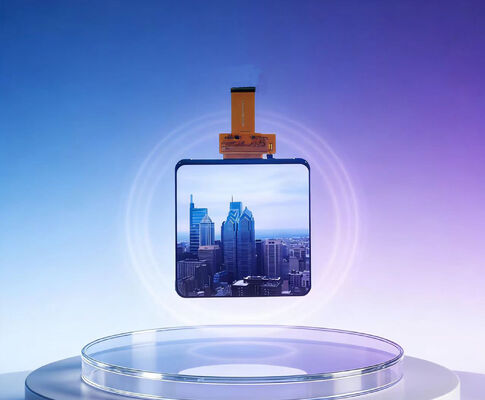

5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC 0

5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC 1

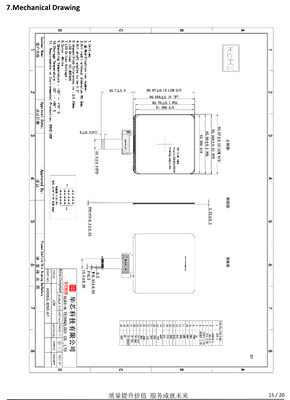

Technicl drawing

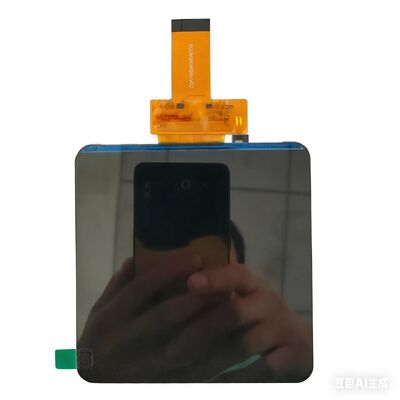

5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC 2


TFT Technology Overview
5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC 3 5 Inch square TFT Color Display with 720*720 Resolution and MIPI Interface Driven by JD9365TX IC 4
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
  • Cost-effective factory base in inland city
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • Expert engineering team with 20+ years experience
  • Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
  • Registered capital: 20 million
  • Current staff: 500+ employees
  • R&D accounts for 10% of workforce
  • QC accounts for 15% of workforce
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands of logarithms/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response times for quick pixel switching
  • Wide viewing angles with minimal color shifts
  • Energy-efficient operation
  • Available in various sizes from small handheld to large panel displays
  • LED backlighting for screen illumination
  • Wide range of applications across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio
  • Backlighting requirements and power consumption
  • Response time limitations and potential motion blur
  • Limited flexibility in display form factors
  • Limited color gamut range
