2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight

  • 2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight
  • 2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight
  • 2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight
  • 2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight
  • 2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight
  • 2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight
  • 2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight
  • 2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight
  • 2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight
  • 2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight
Lieu d'origine Chine
Nom de marque HuaXin
Certification ISO14001/ISO9001/IATF16949
Numéro de modèle HX24QV088A
Quantité de commande min 1000
Prix Négociable
Détails d'emballage Blister + boîte en mousse + sac à bulles + carton intérieur + carton maître
Délai de livraison 6 semaines ~ 8 semaines
Conditions de paiement T/T
Capacité d'approvisionnement 100 000 par mois
Détails sur le produit
Technologie d'affichage ecran couleur de tft Nom AFFICHAGE TFT
Taille 2,4" Résolution 240*320
Conduite en circulation ST7789V Angle de vue Tous
Interface RGB à 18 bits
Laisser un message
Description de produit
2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V  All angle 4LEDS Backlight
Product Specifications
Part NO. HX24QV088A
Display Technology TFT display
Diagonal Screen Size 2.4 inch tft
Active Area (mm) 37.72X48.96
Panel size(mm) 47.50X66.75X3.3
Brightness(cd/m2) 310
Resolution 240*320
Interface 18-bit RGB
View angle ALL
Driving IC  ST7789V
Product Picture



2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight 0

2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight 1

2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight 2

2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight 3

2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight 4

2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight 5



2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight 6

2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight 7

2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight 8

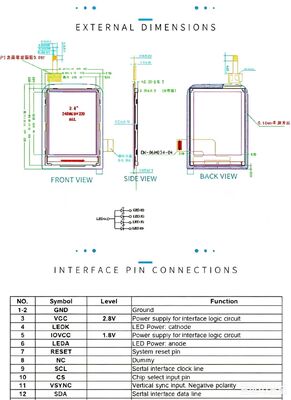

Technical Drawing

2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight 9

2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight 10


TFT Technology Overview
2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight 11 2.4 Inch TFT Color Display with240*320 Resolution and 8-bit RGB Interface Driving IC ST7789V All angle 4LEDS Backlight 12
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
  • Cost-effective factory base in inland city
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • Expert engineering team with 20+ years experience
  • Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
  • Registered capital: 20 million
  • Current staff: 500+ employees
  • R&D accounts for 10% of workforce
  • QC accounts for 15% of workforce
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands of logarithms/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response times for quick pixel switching
  • Wide viewing angles with minimal color shifts
  • Energy-efficient operation
  • Available in various sizes from small handheld to large panel displays
  • LED backlighting for screen illumination
  • Wide range of applications across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio
  • Backlighting requirements and power consumption
  • Response time limitations and potential motion blur
  • Limited flexibility in display form factors
  • Limited color gamut range
