0.9 Inch TFT Display LCD Screen with 128x128 Resolution and 350cd/m2 Brightness ST7735 Driver

0.9 Inch TFT Display LCD Screen with Resolution 128*128 and ST driving

Pantalla LCD de 0,9 pulgadas

ESHX-ST7735 is a compact 0.9-inch round IPS TFT LCD module. It includes essential components such as a TFT panel, TFT driver IC (ST7735), flexible printed circuit (FPC), backlight, providing a comprehensive and compact solution.

With a resolution of 128x128 RGB pixels on a black background and a typical brightness of 350cd/m2, this module delivers sharp and vibrant visuals, enabling seamless user interaction, making it ideal for applications that require a user-friendly interface.

The module's FPC is designed with a Board to Board (B2B) connector, enabling easy and direct connection to the B2B connector on your PCB. This simplifies integration and ensures a secure and reliable connection.

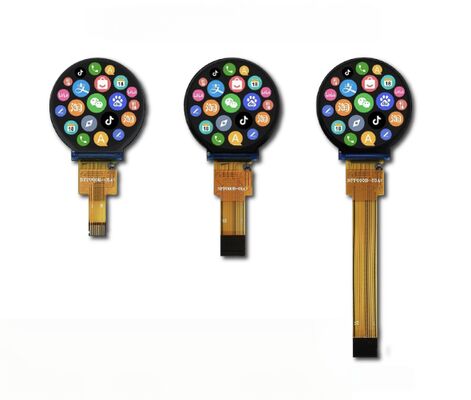

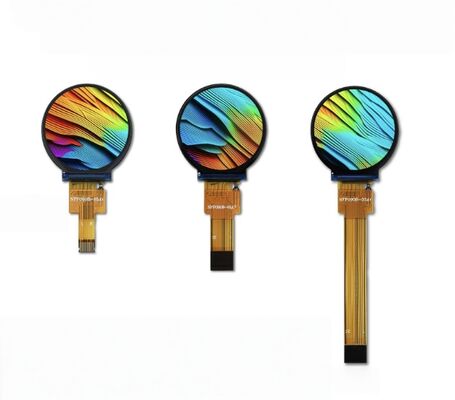

This model is connected via 12-pin short FPC(25mm), others eg. 12-pin long FPC(52mm) is optional.

A. Technical parameters

B. Product Pictures

C. Drawing

E: TFT Product Knowledge

tft substrate input and CF substrate input flow chart as below

TFT structure as below
