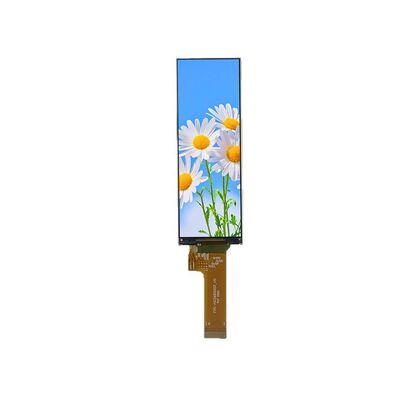

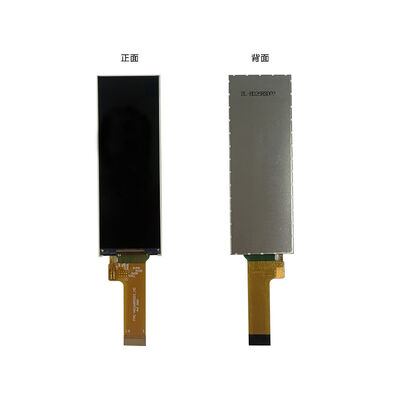

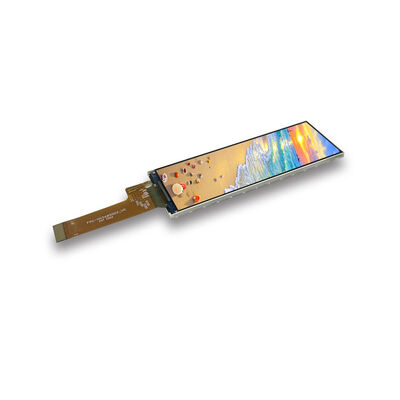

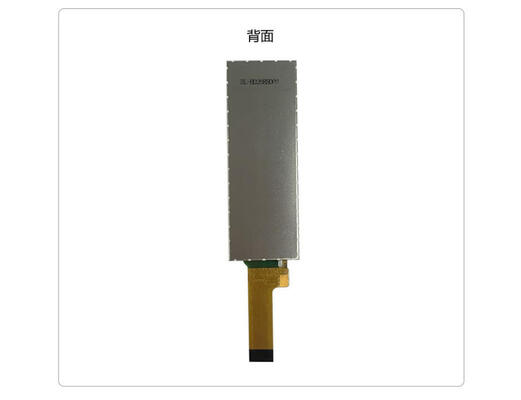

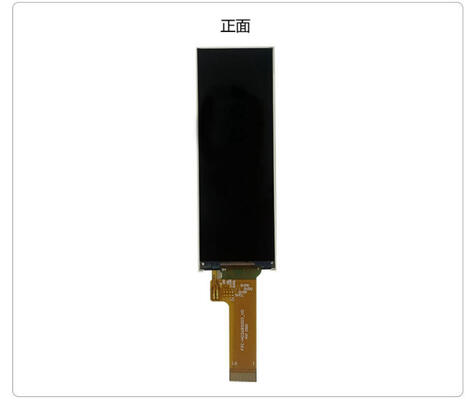

2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface

  • 2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
  • 2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
  • 2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
  • 2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
  • 2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
  • 2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
  • 2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
Lieu d'origine Chine
Nom de marque HuaXin
Certification ISO14001/ISO9001/IATF16949
Numéro de modèle HX0268S003T003
Documents HX0268S003T003-SPEC.pdf
Quantité de commande min 1000
Prix Négociable
Détails d'emballage Blister + boîte en mousse + sac à bulles + carton intérieur + carton maître
Délai de livraison 6 semaines ~ 8 semaines
Conditions de paiement T/T
Capacité d'approvisionnement 100 000 par mois

Contactez-moi pour des aperçus gratuits et des bons.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Technologie d'affichage LCD de type bar Nom Bar Type TFT
Taille 2,68" Résolution 142RVB x 428
Luminosité 450 angle de vue angle de vue libre
Interface Qspi Conduite en circulation NV3007
Écran tactile Ctp
Vous pouvez cocher les produits dont vous avez besoin et communiquer avec nous dans le babillard électronique.
Laisser un message
Description de produit
2.68 Inch Bar Type TFT LCD Display Module with  touch panel  142RGB x 428  Resolution and QSPI interface

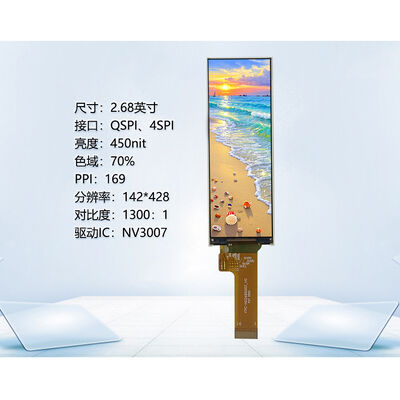

Product Specifications
Part No. HX0268S003T003
Display Size 2.68 inch tft display
Outline Size (mm) 24.38(H) ×69.43(V)×2.09(T)
AA Size (mm) 21.28(H)×64.14(V)
Resolution 142RGB x 428
Interface QSPI
Brightness 450
View Angle all
Driving IC  NV3007
Touch screen CTP
Technical Drawing
2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface 0

TFT Technology Overview
TFT Substrate and CF Substrate Input Flow
2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface 1
TFT Structure
2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface 2
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
  • Founded: 2009
  • Location: Hubei, Enshi
  • Registered capital: 20 million
  • Current staff: 500+
  • R&D team: 10% of workforce
  • QC team: 15% of workforce
Company Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Highly automated production processes
  • 20+ years experience in LCD field
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousands/Day
Backlight Production 100 200 300 500 500 Thousands/Day
OLED Production 10 20 30 40 50 Thousands/Day
Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Image Quality: High resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching capability
  • Viewing Angles: Wide viewing angles with minimal color shift
  • Energy Efficiency: Lower power consumption than alternative technologies
  • Size Flexibility: Available in sizes from small handheld to large panels
  • Backlighting: Typically uses LED backlight systems
  • Versatility: Wide range of applications across industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Moderate contrast ratio
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving images
  • Limited flexibility in physical form
  • Restricted color gamut compared to some alternatives
