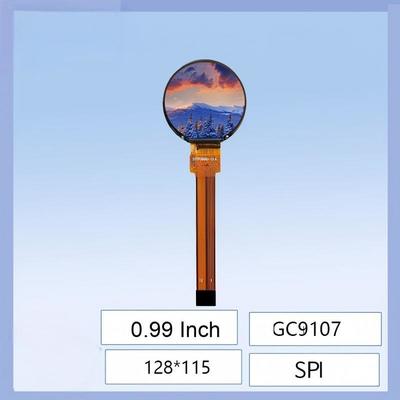

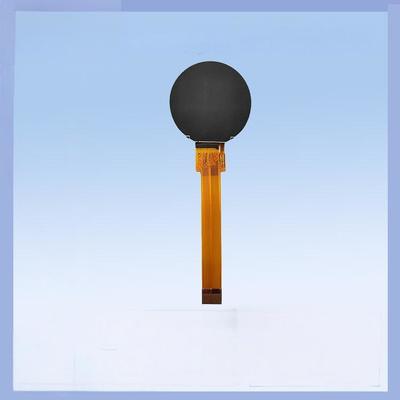

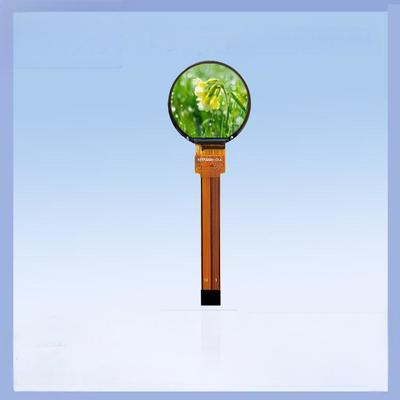

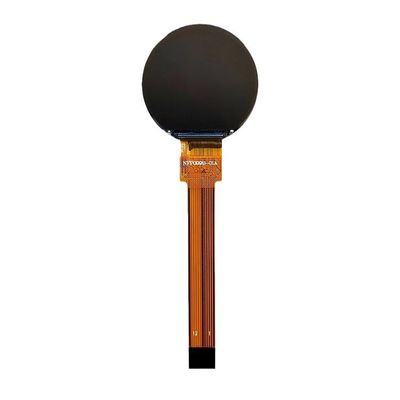

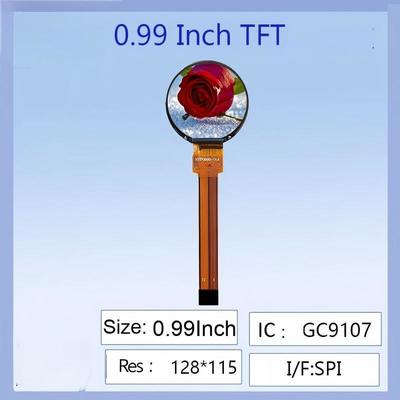

0.99 Inch High-Definition IPS TFT LCD Round Color Screen - 128x115 Resolution, GC9107 , Full-Color Display, Wide Viewing Angle, for Smart Wearables/DIY Electronic Projects/Industrial Instrument Panels
Lieu d'origine | CHINE |
---|---|
Nom de marque | HuaXin |
Certification | ISO14001/ISO9001/IATF16949 |
Numéro de modèle | ESHX099XZJR02 |
Quantité de commande min | 1000 |
Prix | 1.5-2usd |
Détails d'emballage | Blister + boîte en mousse + sac à bulles + carton intérieur + carton maître |
Délai de livraison | 6 semaines ~ 8 semaines |
Conditions de paiement | T / t |
Capacité d'approvisionnement | 50k par mois |

Contactez-moi pour des aperçus gratuits et des bons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.
xDétails sur le produit
Technologie d'affichage | Affichage TFT rond | Nom | montre oled affichage |
---|---|---|---|
Taille | 0,99''Rond | | Résolution | 128 * 115 |
Type d'affichage | Tft | Interface | Spice |
Mettre en évidence | 0.99 inch IPS TFT LCD round display,128x115 resolution round color screen,GC9107 full-color TFT display |
Description de produit
0.99 Inch High-Definition IPS TFT LCD Round Color Screen
High-quality 0.99" IPS round TFT LCD with 128x115 resolution, GC9107 driver IC, full-color display, and wide viewing angle. Ideal for smart wearables, DIY electronic projects, and industrial instrument panels.
Key Features
- 128x115 resolution for crisp display
- GC9107 driver IC for stable performance
- Wide viewing angle in all directions
- Long lifespan (50,000+ hours)
- RoHS certified for commercial use
- 3.3V supply voltage
- 450TYP luminance
- 4 S-PI connection type
Product Specifications
Parameter | Value |
---|---|
Part No. | ESHX099XZJR02 |
Driver IC | GC9107 |
Outline Dimensions (L x W x H) | 26.71mm x 26.22mm x 1.86mm |
Active Area (L x W) | 24.36mm x 21.88mm |
Viewing Angle | All directions |
Operation Temperature | -20°C to +70°C |
Storage Temperature | -30°C to 80°C |
Product Images





Drawing & Pin Definition

Display Technology Comparison
OLED Advantages
- Lighter and thinner than LCDs
- High contrast ratio
- Superior color saturation
- Lower power consumption
OLED Disadvantages
- Higher cost compared to LCD and TFT
- Shorter operational lifetime than LCD and TFT
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
- Location: Hubei, Enshi
- Founded: 2009
- Specialization: LCD, LCM, TFT, backlight, and OLED displays
- Registered capital: 20 million
- Current staff: 500+
- R&D team: 10% of workforce
- Quality control: 15% of workforce
Certifications
- ISO14001
- ISO9001/IATF16949
- SGS certified LCD modules
Company Advantages
- Cost-effective inland factory location
- Advanced equipment for stable quality
- Automated processes for efficiency
- 20+ years of LCD industry experience
- Custom product design capabilities
Product Applications
- Safety boxes & instruments
- Locks & smart home devices
- Transmitters & watches
- Radios
- Collimators & navigators
